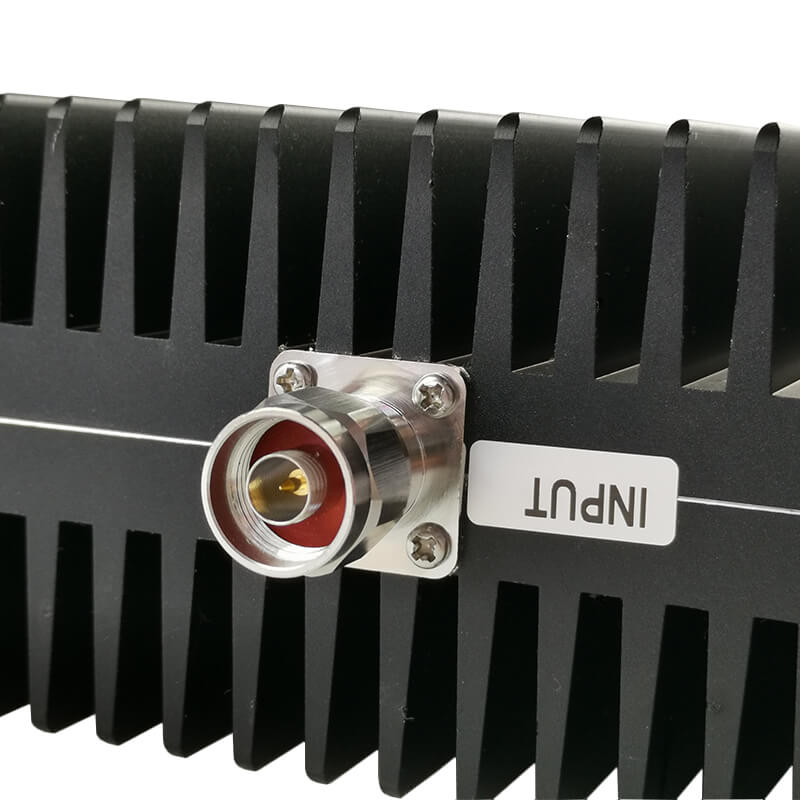

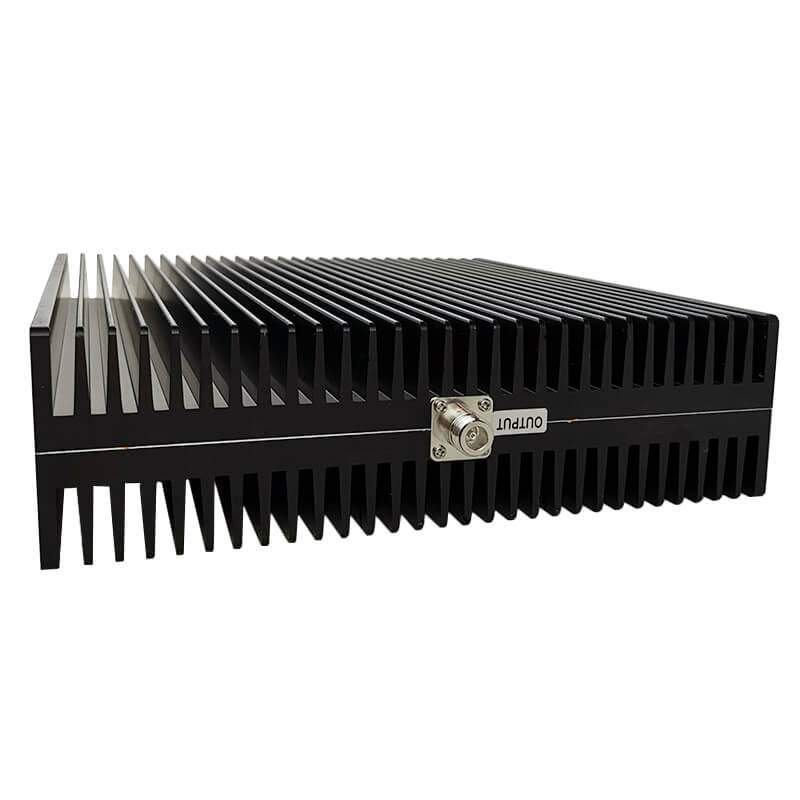

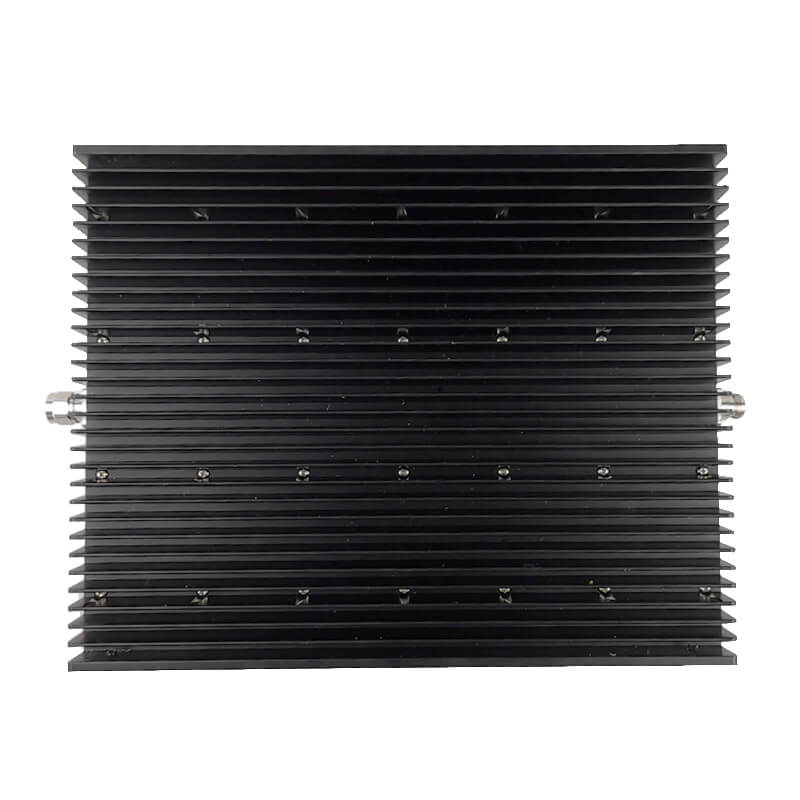

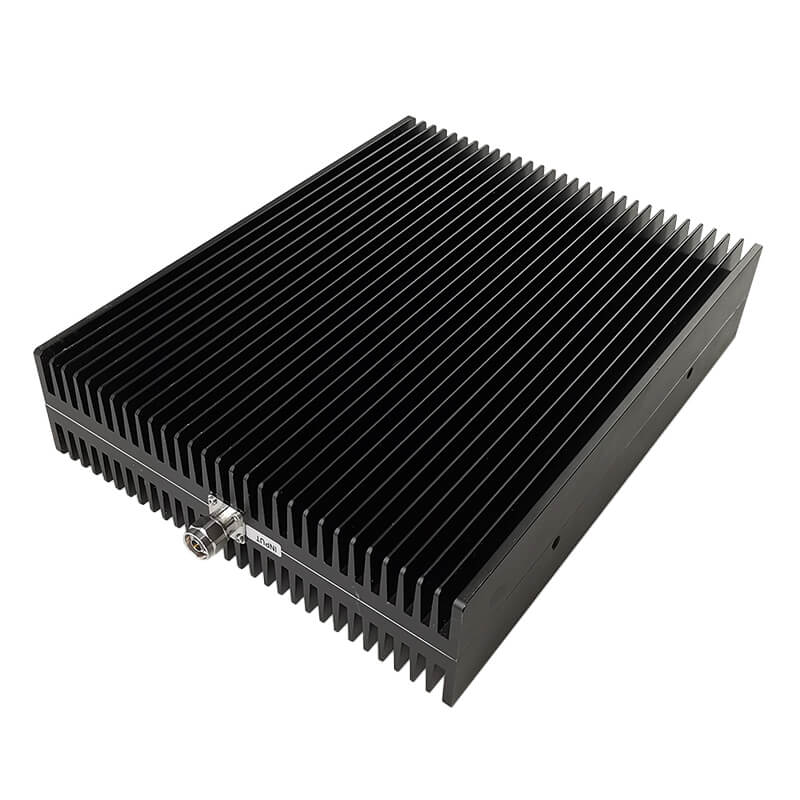

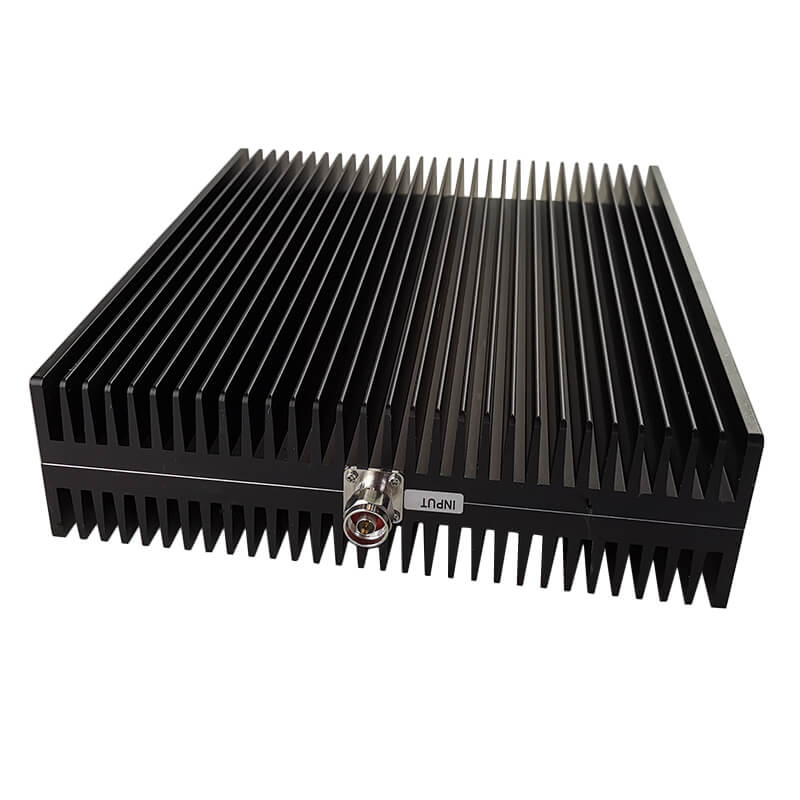

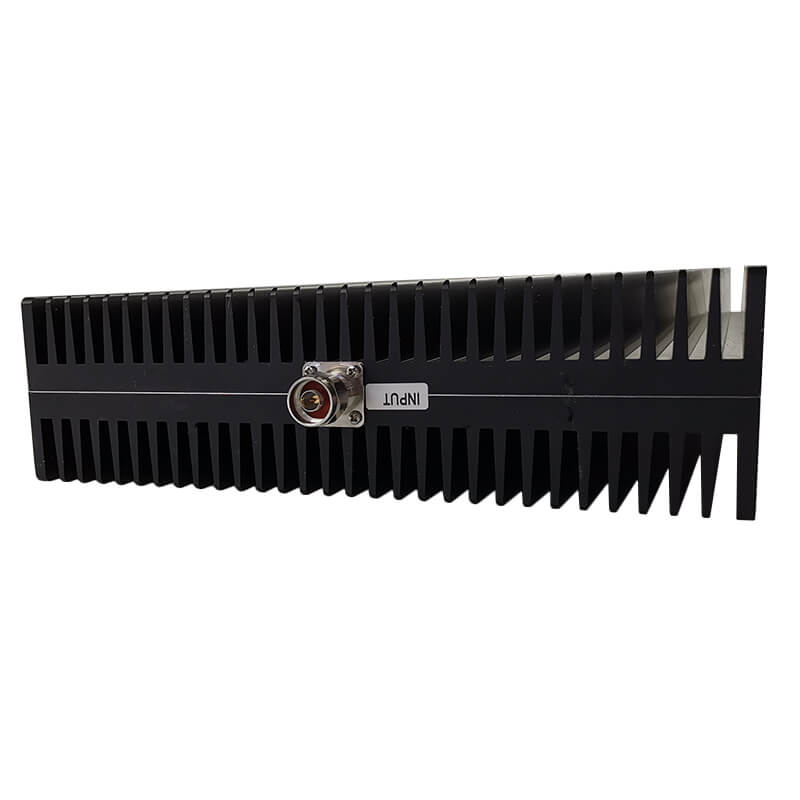

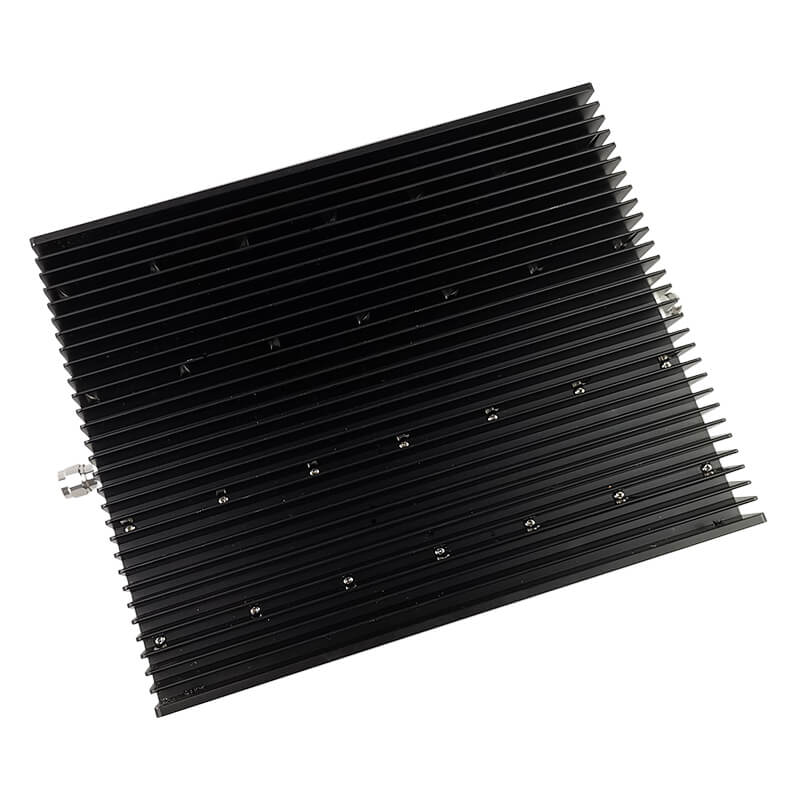

500W RF Attenuator 1-60dB 50ohm DC-3GHz/4GHz

Application:

500W N-Type RF Attenuator is widely used in the below fields:

Mobile Communication Network Optimization and In-door distribution system.

Cluster communication, satellite communication, shortwave communication and hopping radio.

Radar, electronic navigation and electronic confrontation.

Aerospace equipment systems

We could do DIN-JK or N-KK for this product. If you have any other requests, please contact us now.

Product details:

Additional information

Model

IC-AT500-01

Power

500W

Connector

DIN-J/N-K, DIN-JK, N-JK

Frequency Range

DC-3GHz, DC-4GHz

Impendance

50Ohm

VSWR

1.2:1

Attenuation

1,2,3,5,6,10,15,20,30,40dB available, and 1-10dB.±0.5dB,15-30dB±1dB, 40-50dB±2dB

Temperature Range

-55°C to +125°C

Dimension

430*300*85mm

Weight

15KG
