10W N-Type RF Attenuator is widely used in the below fields:
Mobile Communication Network Optimization and In-door distribution system.
Cluster communication, satellite communication, shortwave communication and hopping radio.
Radar, electronic navigation and electronic confrontation.
Aerospace equipment systems
Model | IC-AT10-01 |
---|---|
Power | 10W |
Connector | N-JK |
Frequency Range | DC-3GHz, DC-4GHz |
Impendance | 50Ohm |
VSWR | 1.2:1 |
Attenuation | 1,3,5,6,10,15,20,30dB available, 1-10dB±0.5dB, 15-40dB±1dB |
Temperature Range | -55°C to +125°C |

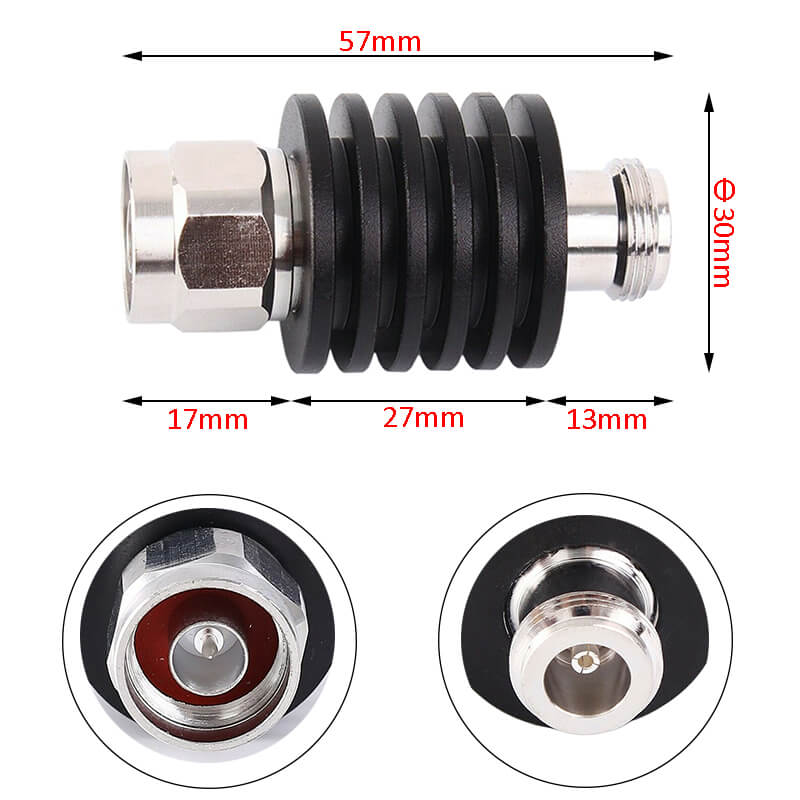

Dimension | φ30*57.6 |
Weight | 81g |
